型式 規格 |
活塞直徑 (mm) |
活塞面積 (cm2) 推側 / 拉側 |
最大拉桿出力 KN(kgf) 推側 / 拉側 |
活塞行程 (mm) |
最大使用油壓力 (kgf / cm2) |
最高轉速 (r.p.m.) |
慣性矩 I (kg‧m2 ) |
重量 (kg) |
總流量 L/min |
| MH80 | 80 | 47.7 / 42.8 | 15.5(1580) / 13.9(1417) | 15 | 3.5(35.7) | 6000 | 0.005 | 5.1 | 0.4 |
| MH100 | 100 | 75.4 / 70.5 | 24.5(2498) / 22.9(2335) | 20 | 3.5(35.7) | 5500 | 0.0125 | 6.6 | 0.4 |
| MH125 | 125 | 121.1 / 114 | 39.3(4007) / 37(3773) | 25 | 3.5(35.7) | 5500 | 0.02 | 8.4 | 0.4 |
| MH150 | 150 | 176 / 160 | 66(6730) / 60(6118) | 30 | 4.0(40.8) | 4000 | 0.047 | 10.4 | 0.8 |
|

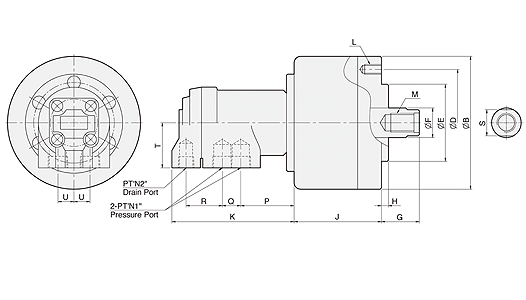

型式 尺寸 |
B | D |
E (h7) |
F |
G max. |
G min. |
H | J | K | L | M | N1 | N2 | P | Q | R | T | U | S |
| MH80 | 112 | 90 | 65 | 25 | 45 | 30 | 6 | 73.5 | 103 | 6-M8x16 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| MH100 | 135 | 100 | 80 | 25 | 45 | 25 | 6 | 88.5 | 103 | 6-M10x19 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| MH125 | 160 | 130 | 110 | 30 | 51 | 26 | 6 | 95.5 | 103 | 6-M12x20 | M20x2.5x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 27 |
| MH150 | 190 | 130 | 110 | 45 | 50 | 20 | 6 | 107 | 103 | 12-M12x20 | M30x3.5x40 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 38 |
