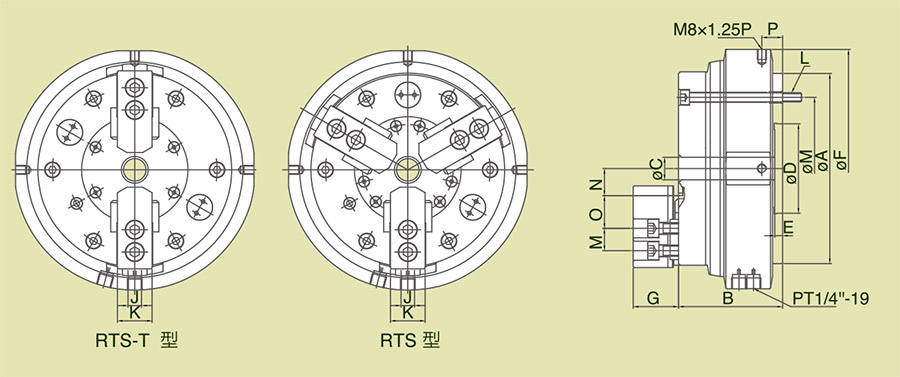

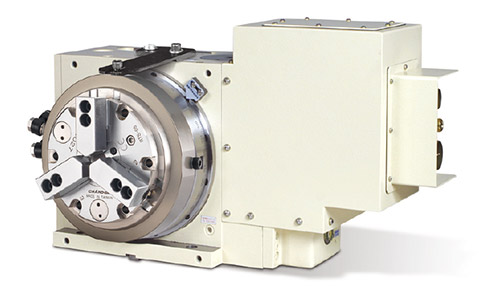

| 型式 / 規格 | A | B | C | D | E | F | G | H | I | J | K | L |
| RTS-05 | 140 | 85 | 16 | 60 | 6 | 182 | 33.6 | 62 | 14 | 10 | 25 | 6-M8 x 1.25P |
| RTS-06 | 170 | 93 | 20 | 80 | 7 | 215 | 40.4 | 73 | 20 | 12 | 31 | 6-M8 x 1.25P |
| RTS-08 | 215 | 112 | 30 | 110 | 8 | 255 | 42.4 | 95 | 25 | 14 | 35 | 6-M10 x 1.5P |
| RTS-10 | 255 | 120 | 43 | 140 | 8 | 300 | 46.4 | 110 | 30 | 16 | 40 | 6-M10 x 1.5P |
| RTS-05T | 140 | 85 | 16 | 60 | 6 | 182 | 33.6 | 62 | 14 | 10 | 25 | 6-M8 x 1.25P |
| RTS-06T | 170 | 93 | 20 | 80 | 7 | 215 | 40.4 | 73 | 20 | 12 | 31 | 6-M8 x 1.25P |
| 型式 / 規格 | R | M | P |
N max. |
N min |
O max. |
O min |
通孔直徑 (mm) |
活塞面積 (cm2) |
柱塞行程 (mm) |
壓力範圍 kgf/cm2 (Mpa) |
淨重 (kg) |
|
| RTS-05 |
6-M6×1P (PCDØ92) |
PCDØ118 | 18.5 | 26.93 | 24.62 | 20.05 | 6.55 | 16 | 74 | 10 | 2 - 7 | 0.2-0.7 | 10 |
| RTS-06 |
6-M8×1.25P (PCDØ120) |
PCDØ147 | 18.5 | 36.46 | 33.69 | 21.55 | 15.55 | 20 | 120 | 13 | 2 - 7 | 0.2-0.7 | 16.8 |
| RTS-08 |
6-M10×1.5P (PCDØ155) |
PCDØ185 | 19.5 | 44.92 | 41.52 | 29.55 | 17.55 | 30 | 190 | 16 | 2 - 7 | 0.2-0.7 | 30.6 |
| RTS-10 |
6-M12×1.75P (PCDØ190) |
PCDØ220 | 21.5 | 53.63 | 49.59 | 36.55 | 17.05 | 43 | 280 | 19 | 2 - 7 | 0.2-0.7 | 45.1 |
| RTS-05T |
2-M6×1P (PCDØ92) |
PCDØ118 | 18.5 | 26.93 | 24.62 | 20.05 | 6.55 | 16 | 74 | 10 | 2 - 7 | 0.2-0.7 | 9.7 |
| RTS-06T |
2-M8×1.25P (PCDØ115) |
PCDØ147 | 18.5 | 36.46 | 33.69 | 21.55 | 15.55 | 20 | 120 | 13 | 2 - 7 | 0.2-0.7 | 16.3 |
| 型式 / 規格 |
爪行程 (直徑) (mm) |
最高迴轉速 (min-1) |
空壓夾持力 7kgf/cm2 (0.7Mpa) |
夾持範圍 | |
| kgf | (KN) | ||||
| RTS-05 | 4.6 | 450 | 1340 | (13.1) | Ø4-Ø136 |
| RTS-06 | 5.5 | 350 | 2330 | (22.8) | Ø25-Ø166 |
| RTS-08 | 6.8 | 300 | 3730 | (36.5) | Ø33-Ø215 |
| RTS-10 | 8.0 | 250 | 5480 | (53.7) | Ø43-Ø255 |
| RTS-05T | 4.6 | 450 | 1340 | (13.1) | Ø4-Ø136 |
| RTS-06T | 5.5 | 350 | 2330 | (22.8) | Ø25-Ø166 |
