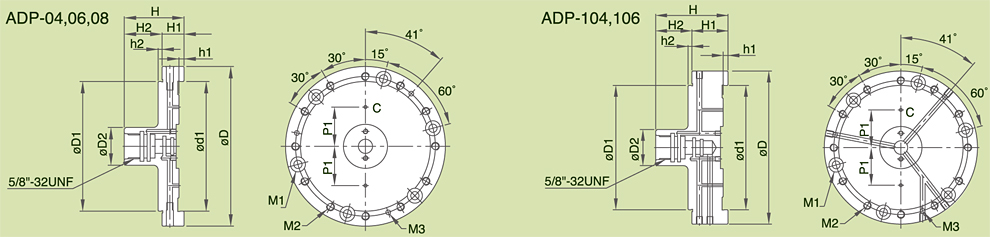

| 型式 / 規格 | D |
D1 (h7) |
D2 |
d1 (H7) |
P1 | H | H1 | H2 | h1 |
| ADP-04 | 101.6 | 82.55 | 24 | 82.55 | 25 | 38 | 14 | 24 | 3.2 |
| ADP-06 | 152.4 | 124.97 | 24 | 124.97 | 34.5 | 38 | 14 | 24 | 3.2 |
| ADP-08 | 203.2 | 167.64 | 30 | 167.64 | 50 | 54 | 25 | 29 | 7.0 |
| ADP-104 | 101.6 | 82.55 | 24 | 82.55 | 25 | 48 | 24 | 24 | 3.2 |
| ADP-106 | 152.4 | 124.97 | 24 | 124.97 | 34.5 | 48 | 24 | 24 | 3.2 |
| 型式 / 規格 | h2 | M1 | M2 | M3 |
| ADP-04 | 2.5 | 6-M5×0.8P(PCD Ø88.9) | 12-M5×0.8P(PCD Ø88.9) | 3-Ø3(PCD Ø88.9) |
| ADP-06 | 2.5 | 6-M6×1P (PCD Ø135.89) | 12-M6×1P (PCD Ø135.89) | 3-Ø3 (PCD Ø135.89) |
| ADP-08 | 5.0 | 6-M10×1.5P (PCD Ø182.88) | 6-M10×1.5P (PCDØ182.88) | 3-Ø4 (PCDØ182.88) |
| ADP-104 | 2.5 | 6-M5×0.8P(PCD Ø88.9) | 12-M5×0.8P(PCD Ø88.9) | 3-Ø3(PCD Ø88.9) |
| ADP-106 | 2.5 | 6-M6×1P (PCD Ø135.89) | 12-M6×1P (PCD Ø135.89) | 3-Ø3 (PCD Ø135.89) |
