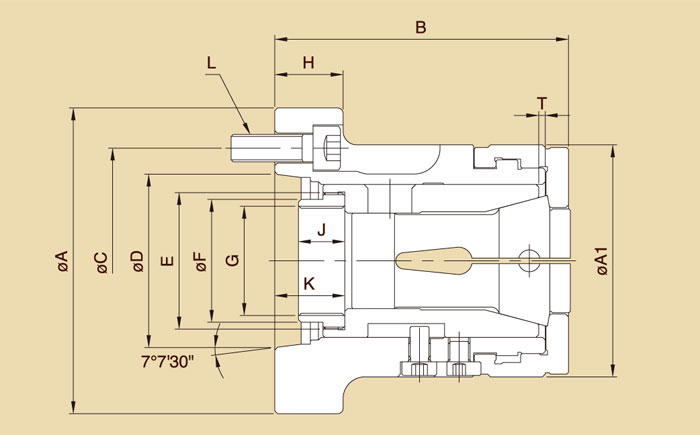

| 型式 / 規格 | A | A1 | B | C | D | E | F |
G max. |
H | J |
K max. |
K min. |
L | T | Sleeve Stroke(mm) | Weight(kg) |
| CK30A4 | 112 | 85 | 107.5 | 82.6 | 63.513 | M50x1.5P | 45 | M40x1.5P | 25 | 17 | 28 | 23 | 3-M10x1.5P | 2.3 | 5 | 4.0 |
| CK42A5 | 135 | 100 | 127 | 104.8 | 82.563 | M66x1.5P | 60 | M55x2P | 27 | 25 | 34 | 28 | 4-M10x1.5P | 3.2 | 6 | 6.2 |
| CK42A6 | 165 | 100 | 127 | 133.4 | 106.375 | M66x1.5P | 65.8 | M60x2P | 32 | 25 | 34 | 28 | 4-M12x1.75P | 3.2 | 6 | 7.6 |
| CK52A5 | 135 | 110 | 127 | 104.8 | 82.563 | M72x1.5P | 60 | M55x2P | 27 | 25 | 34 | 28 | 4-M10x1.5P | 3.2 | 6 | 6.7 |
| CK52A6 | 165 | 130 | 150 | 133.4 | 106.375 | M90x1.5P | 67 | M60x2P | 27 | 30 | 38 | 32 | 4-M12x1.75P | 3.2 | 6 | 12.1 |
| CK60A6 | 165 | 130 | 150 | 133.4 | 106.375 | M90x1.5P | 82 | M75x2P | 27 | 30 | 38 | 32 | 4-M12x1.75P | 3.2 | 6 | 11.1 |
| 型式 / 規格 |
最高迴轉速 r.p.m (min-1) |
搭配油壓缸型號 | 搭配筒夾型號 | 夾持範圍 |
最大推力 kgf (KN) |
最大靜夾持力 kgf (KN) |
|||
| Spring Collet | Multibore Collet | 圓棒 | 六角材 | 方材 | |||||
| CK30A4 | 7000 | P1036 | 163E | M-669 | Ø3~Ø30 | 4~27 | 5~20 | 2040 (20) | 4488 (44) |
| CK42A5 | 6000 | P1246 | 173E | M-673 | Ø3~Ø42 | 6~36 | 6~30 | 2550 (25) | 5610 (55) |
| CK42A6 | 6000 | P1552 | 173E | M-673 | Ø3~Ø42 | 6~36 | 6~30 | 2550 (25) | 5610 (55) |
| CK52A5 | 6000 | P1246 | 177E | - | Ø5~Ø52 | 8~45 | 7~36 | 2850(28) | 6620(61) |
| CK52A6 | 6000 | P1551 | 177E | - | Ø5~Ø52 | 8~45 | 7~36 | 2850(28) | 6620(61) |
| CK60A6 | 5000 | P1875 | 185E | M-677 | Ø4~Ø60 | 8~52 | 7~42 | 3060 (30) | 6630 (65) |
