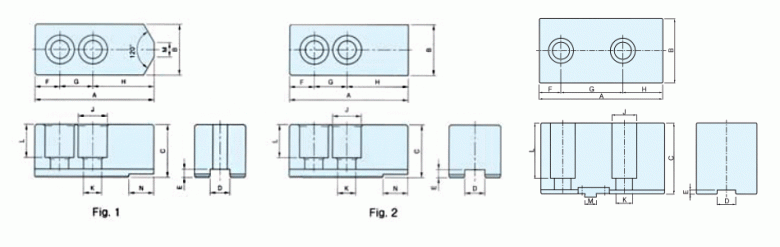

韩国瑞岩型号:SJ-04T1/SJ-04T2/SJ-05T1/SJ-05A1/SJ-06T1/SJ-08A1/SJ-10T1/SJ-10T2/SJ-12T1/SJ-12A1/SJ-12A3/SJ-15A1/SJ-15A2/SJ-15A3/SJ-21A1/SJ-21A2/SJ-32A1/SJ-40A1/SJ-40A2/SJ-06A1/SJ-08T1
 |
|
|
 |
|
|
 |
|
Item
Model
|
|
Serration |
Matching chuck |
A |
B |
C |
D |
E |
|
SJ-04T1 |
1 |
1.5X60 ° |
27M/37M-4,5 |
47.5 |
25 |
25 |
11 |
4 |
|
SJ-04T2 |
1 |
1.5X60 ° |
1MA-4 |
54 |
25 |
25 |
10 |
5 |
|
SJ-05T1 |
1 |
1.5X60 ° |
CAH-5 |
54 |
23 |
25 |
10 |
4 |
|
SJ-05A1 |
2 |
1.5X60 ° |
1MA-5 |
58.5 |
25 |
25 |
10 |
5 |
|
SJ-06T1 |
1 |
1.5X60 ° |
CAH/CA/CGH-6 |
72 |
31 |
31.5 |
12 |
5 |
|
SJ-08A1 |
2 |
1.5X60 ° |
27M/37M-8 |
85.5 |
40 |
40 |
16 |
5 |
|
SJ-10T1 |
1 |
1.5X60 ° |
CAH/CAS/CGH-10 |
110 |
44 |
44.5 |
16 |
5 |
|
SJ-10T2 |
1 |
1.5X60 ° |
27M/37M-10 |
108 |
45 |
45 |
18 |
5 |
|
SJ-12T1 |
2 |
1.5X60 ° |
CAS/1MA12 |
129 |
49 |
49 |
18 |
6 |
|
SJ-12A1 |
2 |
1.5X60 ° |
CAH-12 |
111 |
49 |
49.5 |
21 |
5 |
|
SJ-12A3 |
2 |
1.5X60 ° |
27M/37M-12 |
111 |
50 |
60 |
21 |
5 |
|
SJ-15A1 |
2 |
1.5X60 ° |
CAH-15,18 |
165 |
59 |
59.5 |
22 |
8 |
|
SJ-15A2 |
2 |
3.0X60 ° |
1MA-15,18,21 |
156 |
65 |
70 |
26 |
8 |
|
SJ-15A3 |
2 |
1.5X60 ° |
CAS-15,18 |
135 |
50 |
59 |
25.5 |
5 |
|
SJ-21A1 |
2 |
3.0X60 ° |
CAH/CAS-21,24 |
180 |
59 |
59.5 |
25 |
9.5 |
|
SJ-21A2 |
2 |
3.0X60 ° |
1MA-21,24 |
180 |
65 |
70 |
26 |
8 |
|
SJ-32A1 |
3 |
- |
CAS-32,32HC |
165 |
75 |
83 |
12.7 |
12.5 |
|
SJ-40A1 |
3 |
- |
CAS-32,32HC |
200 |
98 |
110 |
30 |
6 |
|
SJ-40A2 |
3 |
- |
CAS-40HC,50HC |
270 |
110 |
110 |
30 |
8.5 |
|
SJ-06A1 |
2 |
1.5X60° |
27M/37M-6 |
66 |
35 |
35 |
12 |
5 |
|
SJ-08T1 |
1 |
1.5X60° |
CAH/CAS/CGH-8 |
95 |
37 |
37.5 |
14 |
5 |
|
|
Item
Model
|
F |
G |
H |
J |
K |
L |
M |
N |
|
|
SJ-04T1 |
9.5 |
16 |
22 |
14 |
9/8.2 |
16 |
4 |
5.5 |
|
SJ-04T2 |
10 |
14 |
30 |
13.5 |
9 |
14 |
8 |
3 |
|
SJ-05T1 |
11.5 |
14 |
28 |
13.5 |
8.5 |
16.5 |
5 |
- |
|
SJ-05A1 |
8 |
19 |
31.5 |
14 |
9 |
14 |
- |
- |
|
SJ-06T1 |
15 |
20 |
37 |
17.5 |
11 |
19.5 |
12 |
15 |
|
SJ-08A1 |
20 |
25 |
40.5 |
20 |
13.5 |
26 |
- |
- |
|
SJ-10T1 |
30 |
30 |
50 |
20 |
14 |
28.5 |
15 |
20 |
|
SJ-10T2 |
24 |
30 |
54 |
23 |
16 |
30 |
8 |
- |
|
SJ-12T1 |
39 |
30 |
60 |
23 |
16 |
31 |
- |
- |
|
SJ-12A1 |
21 |
30 |
60 |
25 |
17 |
31.5 |
- |
- |
|
SJ-12A3 |
25 |
35 |
51 |
26 |
18 |
42 |
- |
- |
|
SJ-15A1 |
47 |
43 |
75 |
32 |
22 |
36 |
- |
- |
|
SJ-15A2 |
34 |
50 |
72 |
32 |
22 |
50 |
- |
- |
|
SJ-15A3 |
26 |
473 |
66 |
32 |
21 |
39 |
- |
- |
|
SJ-21A1 |
40 |
60 |
80 |
32 |
22 |
36 |
- |
- |
|
SJ-21A2 |
34 |
50 |
96 |
32 |
22 |
50 |
- |
- |
|
SJ-32A1 |
21.9 |
76.2 |
66.9 |
32 |
22 |
54 |
19.03 |
- |
|
SJ-40A1 |
35 |
100 |
65 |
40 |
27 |
86 |
19.03 |
- |
|
SJ-40A2 |
48.8 |
2-76.2 |
68.8 |
40 |
27 |
85 |
19.03 |
- |
|
SJ-06A1 |
14.5 |
20 |
31.5 |
17.5 |
11 |
22 |
- |
- |
|
SJ-08T1 |
20 |
25 |
50 |
20 |
14 |
22.5 |
12 |
20 |
|
