韩国瑞岩型号:SM-HSRT 230/SM-HSRT 280/SM-HSRT 300
 |
|
|
 |
|
|
 |
|
Spec
Model
|
Spindle nose NO. |
weight(With standard soft jaws) |
Gd moment of inertia |
|
SM-HSRT 230 |
ASA No.6 |
35 |
12.74(1.3) |
|
SM-HSRT 280 |
ASA No.8 |
65 |
35.28(3.6) |
|
SM-HSRT 300 |
ASA No.8 |
83 |
41.16(4.2) |
|
|
Spec
Model
|
Gripping force |
Main spindle bore speed |
|
|
SM-HSRT 230 |
12.45(1270) |
Over 45 |
|
SM-HSRT 280 |
21.27(2170) |
Over 45 |
|
SM-HSRT 300 |
34.31(3500) |
Over 55 |
|
|
|
 |
|

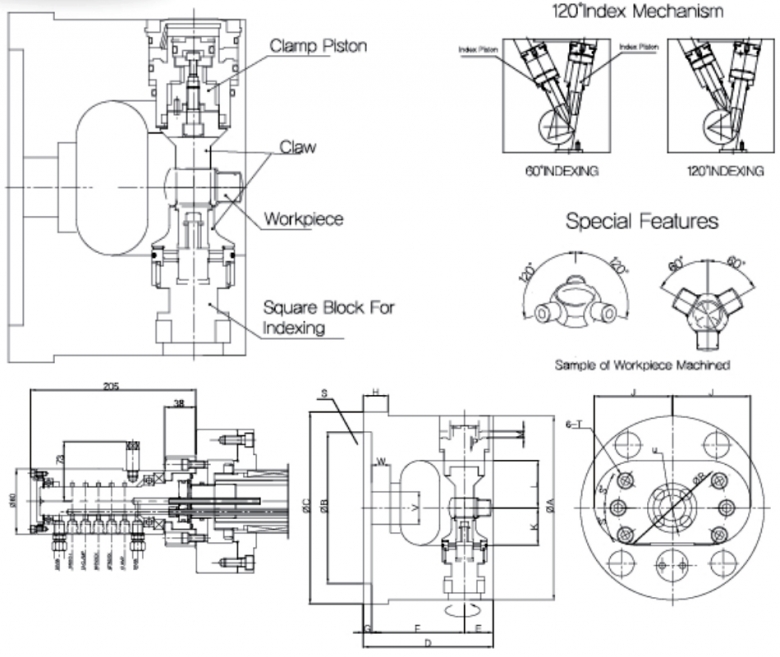

Item
Model
|
A |
C |
D |
E |
F |
G |
H |
J |
K |
|
SM-HSRT 230 |
230 |
245 |
173 |
35 |
123 |
15 |
27 |
102 |
40 |
|
SM-HSRT 280 |
280 |
295 |
205 |
50 |
144 |
11 |
29 |
83 |
56 |
|
SM-HSRT 300 |
300 |
295 |
211 |
56.5 |
144 |
11 |
60 |
83 |
56 |
|
|
Item
Model
|
L |
M |
R |
S |
T |
|
V |
W |
Bro |
|
|
SM-HSRT 230 |
58 |
15 |
105 |
30 |
M10 |
53 |
40 |
41 |
130 |
|
SM-HSRT 280 |
71 |
21 |
130 |
40 |
M16 |
61 |
45 |
46 |
170 |
|
SM-HSRT 300 |
65 |
25 |
130 |
40 |
M16 |
61 |
45 |
46 |
170 |
|
