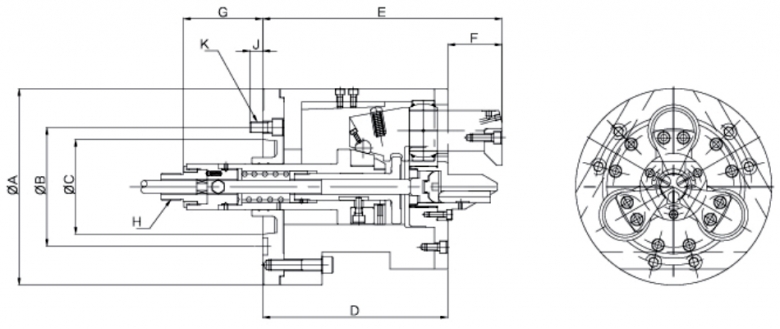

韩国瑞岩三爪卡盘型号:SM-CBN 230/SM-CBN 250/SM-CBN 300
 |
|
|
 |
|
|
 |
|
Spec
Model
|
Gripping Max |
Gripping Min |
Max. permissible input force KN(kgf) |
Max. static gripping force KN(kgf) |
|
SM-CBN 230 |
110 |
20 |
45(2580) |
75(7600) |
|
SM-CBN 250 |
110 |
25 |
75(7600) |
100(10200) |
|
SM-CBN 300 |
140 |
40 |
80(8150) |
120(12200) |
|
|
Spec
Model
|
Max. Permissible speed r.p.m |
weight(With standard soft jaws) |
matching cylinder |
GD2 |
|
|
SM-CBN 230 |
3500 |
68 |
120/80 |
4.12(0.42) |
|
SM-CBN 250 |
3000 |
85 |
160/80 |
7.74(0.79) |
|
SM-CBN 300 |
2500 |
120 |
160/80 |
13.23(1.35) |
|
|
|
 |
|
Item
Model
|
A |
B |
C |
D |
F |
J |
|
SM-CBN 230 |
230 |
133.4 |
106.719 |
233 |
55 |
18 |
|
SM-CBN 250 |
250 |
133.4 |
106.719 |
225 |
52 |
18 |
|
SM-CBN 300 |
300 |
171.4 |
196.869 |
244 |
55 |
22 |
|
|
Item
Model
|
K |
E MAX |
E MIN |
G MAX |
G MIN |
|
|
SM-CBN 230 |
6-M12 |
290 |
235 |
186 |
108 |
|
SM-CBN 250 |
6-M12 |
278 |
226 |
199 |
121 |
|
SM-CBN 300 |
6-M12 |
306 |
251 |
141 |
66 |
|
