韩国瑞岩三爪卡盘型号:SM-IDC 06/SM-IDC 08/SM-IDC 10/SM-IDC 12/SM-IDC 15
 |
|
|
 |
|
|
 |
|
Spec
Model
|
Gripping Max |
Gripping Min |
Max. permissible input force KN(kgf) |
Max. static gripping force KN(kgf) |
Max. Permissible speed r.p.m |
|
SM-IDC 06 |
40 |
14 |
14.7(1500) |
39.2(4000) |
4500 |
|
SM-IDC 08 |
90 |
40 |
24.5(2600) |
68.7(7000) |
4000 |
|
SM-IDC 10 |
130 |
90 |
39.2(4000) |
117.8(12000) |
3300 |
|
SM-IDC 12 |
180 |
130 |
47.1(4800) |
147.2(15000) |
2500 |
|
SM-IDC 15 |
- |
- |
- |
- |
- |
|
|
Spec
Model
|
weight(With standard soft jaws) |
matching cylinder |
GD2 |
Collet Range |
Cylinder Stroke |
|
|
SM-IDC 06 |
6.8 |
YAS-100 |
0.59(0.060) |
1.4 |
4 |
|
SM-IDC 08 |
13.3 |
YAS-125 |
1.86(0.19) |
1.4 |
4 |
|
SM-IDC 10 |
34 |
YAS-125 |
6.96(0.71) |
1.4 |
4 |
|
SM-IDC 12 |
55 |
YAS-140 |
19.6(2.00) |
1.4 |
4 |
|
SM-IDC 15 |
- |
- |
- |
- |
- |
|
|
|
 |
|

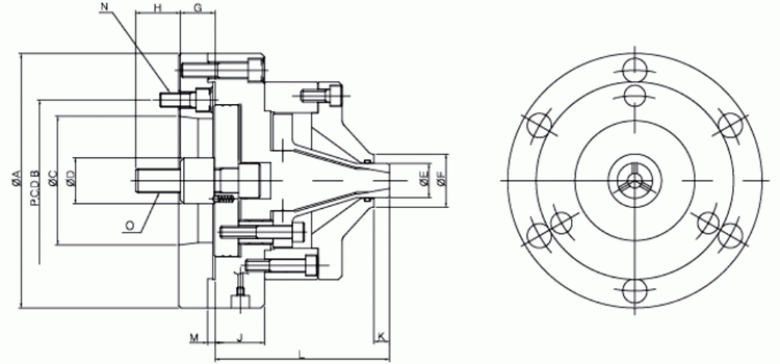

Item
Model
|
A |
B |
C |
D |
F |
J |
K |
L |
|
SM-IDC 06 |
160 |
104.8 |
82.565 |
35 |
E+24 |
35 |
15 |
115 |
|
SM-IDC 08 |
200 |
133.4 |
106.375 |
38 |
E+24 |
35 |
20 |
135 |
|
SM-IDC 10 |
250 |
171.4 |
139.72 |
50 |
E+24 |
35 |
35 |
180 |
|
SM-IDC 12 |
300 |
171.4 |
139.72 |
55 |
E+24 |
45 |
40 |
220 |
|
SM-IDC 15 |
380 |
235 |
196.865 |
65 |
E+24 |
50 |
45 |
250 |
|
|
Item
Model
|
M |
N |
O |
E MAX |
E MIN |
G MAX |
G MIN |
|
|
SM-IDC 06 |
6 |
M10 |
M16 |
60 |
25 |
27 |
25 |
|
SM-IDC 08 |
6 |
M12 |
M20 |
90 |
40 |
33 |
30 |
|
SM-IDC 10 |
6 |
M16 |
M24 |
130 |
90 |
33 |
30 |
|
SM-IDC 12 |
8 |
M16 |
M24 |
180 |
130 |
40 |
36 |
|
SM-IDC 15 |
8 |
M20 |
M27 |
230 |
180 |
40 |
36 |
|
