韩国瑞岩两爪卡盘型号:SM-ODT 06/SM-ODT 08/SM-ODT 10
 |
|
|
 |
|
|
 |
|
Spec
Model
|
Jaw stroke(Diameter) mm |
Plunger stroke mm |
Gripping Max |
Gripping Min |
Max. permissible input force KN(kgf) |
|
SM-ODT 06 |
7 |
11 |
85 |
35 |
9.8(1000) |
|
SM-ODT 08 |
7 |
11 |
200 |
40 |
16.4(1700) |
|
SM-ODT 10 |
10.2 |
16 |
250 |
50 |
24.5(2500) |
|
|
Spec
Model
|
Max. static gripping force KN(kgf) |
Max. Permissible speed r.p.m |
weight(With standard soft jaws) |
Gd moment of inertia |
matching cylinder |
|
|
SM-ODT 06 |
15.7(1600) |
2500 |
14 |
1.4(0.14) |
YAS-80 |
|
SM-ODT 08 |
27.5(2800) |
2200 |
26 |
2.6(2.55) |
YAS-100 |
|
SM-ODT 10 |
39.2(4000) |
1800 |
42 |
4.2(4.12) |
YAS-125 |
|
|
|
 |
|

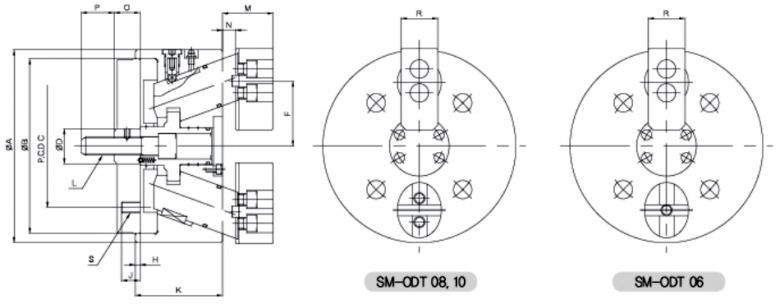

Item
Model
|
A |
C |
D |
H |
J |
K |
L |
N Max |
N Min |
O Max |
|
SM-ODT 06 |
165 |
104.8 |
32 |
5 |
16 |
85 |
M16 |
18 |
18 |
34 |
|
SM-ODT 08 |
210 |
133.4 |
38 |
5 |
18 |
95 |
M20 |
18 |
8 |
39 |
|
SM-ODT 10 |
254 |
171.4 |
50 |
5 |
22 |
110 |
M24 |
23 |
9 |
48 |
|
|
Item
Model
|
O Min |
P |
R |
S |
Bro |
F MAX |
F MIN |
M MAX |
M MIN |
|
|
SM-ODT 06 |
23 |
36 |
35 |
4-M10 |
140 |
58 |
54.5 |
49 |
39 |
|
SM-ODT 08 |
28 |
38 |
40 |
4-M12 |
190 |
71 |
67.5 |
59 |
49 |
|
SM-ODT 10 |
32 |
46 |
50 |
4-M16 |
230 |
85 |
79.9 |
69 |
55 |
|
