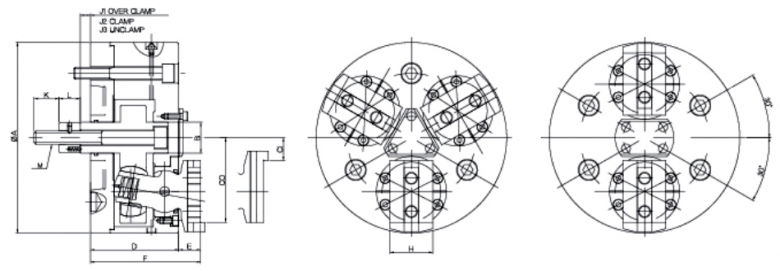

韩国瑞岩三爪卡盘型号:SM-SBL 06/SM-SBL 08/SM-SBL 10/SM-SBL 12/SM-SBL 15/SM-SBL 18/SM-SBL 21
 |
|
|
 |
|
|
 |
|
Spec
Model
|
Thru-hole(Diameter) mm |
Jaw stroke(Diameter) mm |
Plunger stroke mm |
Max. permissible input force KN(kgf) |
Max. static gripping force KN(kgf) |
Max. Permissible speed r.p.m |
|
SM-SBL 06 |
7.9 |
11.3 |
120 |
21.5(2200) |
64.71(6600) |
3500 |
|
SM-SBL 08 |
9.5 |
14.3 |
152 |
28.4(2900) |
85.29(8700) |
2800 |
|
SM-SBL 10 |
12.7 |
17.5 |
203 |
35.29(3600) |
105.88(10800) |
2300 |
|
SM-SBL 12 |
12.7 |
17.5 |
241 |
35.29(3600) |
105.88(10800) |
1800 |
|
SM-SBL 15 |
15.8 |
22.3 |
317 |
53.92(5500) |
161.76(16500) |
1500 |
|
SM-SBL 18 |
15.8 |
22.3 |
394 |
53.92(5500) |
161.76(16500) |
1200 |
|
SM-SBL 21 |
15.8 |
22.3 |
470 |
53.92(5500) |
161.76(16500) |
1000 |
|
|
Spec
Model
|
weight(With standard soft jaws) |
Gd moment of inertia |
matching cylinder |
Gripping dia(out) |
Gripping dia(inside) |
|
|
SM-SBL 06 |
18 |
1.47(0.15) |
YAS-100 |
12.7~120 |
70~152 |
|
SM-SBL 08 |
27 |
4.70(0.48) |
YAS-125 |
16~152 |
76~203 |
|
SM-SBL 10 |
45 |
12.05(1.23) |
YAS-125 |
50~203 |
85~235 |
|
SM-SBL 12 |
37.5 |
23.72(2.42) |
ㅛㅁㄴ-125 |
63~241 |
127~305 |
|
SM-SBL 15 |
84.5 |
83.20(8.49) |
YAS-150 |
76~317 |
165~381 |
|
SM-SBL 18 |
120 |
148.96(15.17) |
YAS-200 |
89~394 |
241~457 |
|
SM-SBL 21 |
180 |
245(25) |
YAS-200 |
162~470 |
317~533 |
|
|
|
 |
|
Item
Model
|
A |
B |
C0 |
D |
E |
F |
K |
|
SM-SBL 06 |
162 |
30.16 |
73.15 |
85.2 |
19.3 |
104.6 |
36 |
|
SM-SBL 08 |
200 |
31.75 |
88.95 |
100 |
23.3 |
123.3 |
36 |
|
SM-SBL 10 |
254 |
41.27 |
112.7 |
118 |
29.1 |
147.1 |
36 |
|
SM-SBL 12 |
300 |
41.27 |
133.2 |
118 |
29.1 |
147.1 |
36 |
|
SM-SBL 15 |
381 |
57.16 |
171.45 |
131 |
32.4 |
163.4 |
50 |
|
SM-SBL 18 |
457 |
88.9 |
209.55 |
131 |
32.4 |
163.4 |
50 |
|
SM-SBL 21 |
533 |
88.9 |
247.65 |
131 |
32.4 |
163.4 |
50 |
|
|
Item
Model
|
L |
M |
C1 |
H0~0.05 |
J1 |
J2 |
J2 |
|
|
SM-SBL 06 |
23 |
M16 |
22.2 |
38.1 |
4.4 |
10.6 |
15.7 |
|
SM-SBL 08 |
23 |
M16 |
25.35 |
44.45 |
4 |
12 |
17.3 |
|
SM-SBL 10 |
28 |
M18 |
30.3 |
57.15 |
4 |
13.5 |
21.5 |
|
SM-SBL 12 |
28 |
M18 |
50.8 |
57.15 |
4 |
13.5 |
21.5 |
|
SM-SBL 15 |
32 |
M24 |
69.8 |
66.68 |
12.7 |
24.7 |
35 |
|
SM-SBL 18 |
32 |
M24 |
107.9 |
66.68 |
12.7 |
24.7 |
35 |
|
SM-SBL 21 |
32 |
M24 |
146 |
66.68 |
12.7 |
24.7 |
35 |
|
