YSGHL-08 |
   |
|
|
|
 |
 |
 |
|
|
 |
|
Spec
Model
|
Order NO. |
Max. Permissible speed r.p.m |
weight(With standard soft jaws) |
Gd moment of inertia |
Cylinder dia |
Piston stroke |
Thru hole dia |
|
YSGHL-08 |
2SGHL08 |
5600 |
17.5 |
0.68(0.070) |
170 |
40 |
68 |
|
|
Spec
Model
|
Piston surface area extend |
Piston surface area retract |
Max draw bar pull extend |
Max draw bar pull retract |
Max operation pressure |
Total leakage |
Matching chuck |
|
|
YSGHL-08 |
179.6 |
166.2 |
66.8(6814) |
61.8(6306) |
40.8 |
4.2 |
CGH-08 |
|
|
|
 |
|

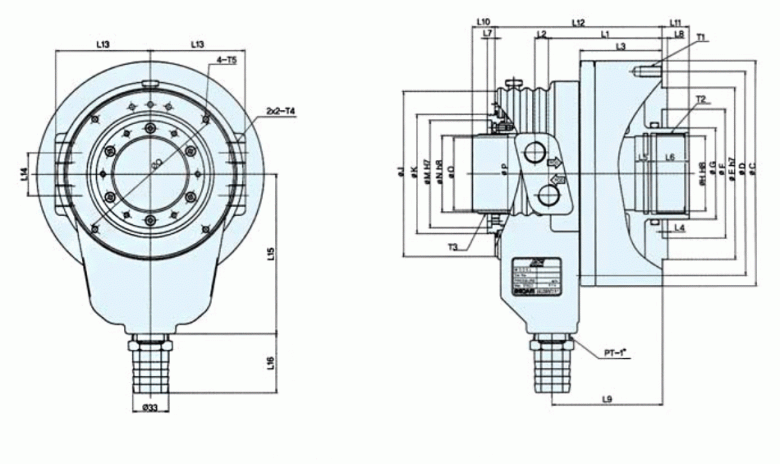

Item
Model
|
C |
D |
E |
F |
G |
H |
J |
K |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
L9 |
L10 Max |
|
YSGHL-08 |
210 |
190 |
160 |
120 |
85 |
70 |
154 |
111 |
127.5 |
12.7 |
98.3 |
5 |
15 |
35 |
7 |
5 |
122.5 |
61 |
|
|
Item
Model
|
L10 Min |
L11 Max |
L11 Min |
L12 |
L13 |
L14 |
L15 |
L16 |
M |
N |
O |
P |
Q |
T1 |
T2 |
T3 |
T4 |
T5 |
|
|
YSGHL-08 |
21 |
35 |
-5 |
175 |
88 |
40 |
149 |
55 |
100 |
71.5 |
68 |
75 |
145 |
6-M10X18 |
M75XP1.5 |
M74XP1.5 |
PT-1/2 |
4-M5X10 |
|
