韩国瑞岩三爪卡盘型号:YSH-05/YSH-06/YSH-08/YSH-10/YSH-15/YSH-21
 |
|
|
 |
 |
|
|
|
|
 |
|
Spec
Model
|
Order NO. |
Max. Permissible speed r.p.m |
weight(With standard soft jaws) |
Gd moment of inertia |
Cylinder dia |
Piston stroke |
Thru hole dia |
|
YSH-05 |
2SH05 |
8000 |
7.3 |
0.09(0.010) |
105 |
15 |
36 |
|
YSH-06 |
2SH06 |
7000 |
9.5 |
0.20(0.021) |
130 |
16 |
46 |
|
YSH-08 |
2SH08 |
6200 |
13.5 |
0.39(0.040) |
156 |
22 |
52 |
|
YSH-10 |
2SH10 |
5000 |
16.8 |
0.81(0.083) |
185 |
25 |
77 |
|
YSH-15 |
2SH15 |
3000 |
52 |
18.6(1.9) |
255 |
23 |
117.5 |
|
YSH-21 |
2SH21 |
2000 |
77 |
29.43(3) |
280 |
51 |
166.5 |
|
|
Spec
Model
|
Piston surface area extend |
Piston surface area retract |
Max draw bar pull extend |
Max draw bar pull retract |
Max operation pressure |
Total leakage |
Matching chuck |
|
|
YSH-05 |
67.15 |
64.47 |
25(2549) |
24(2447) |
40.8 |
3 |
CAH-05 |
|
YSH-06 |
107.29 |
95.53 |
39(40250 |
35(3586) |
40.8 |
3 |
CAH-06 |
|
YSH-08 |
159.77 |
148.62 |
57.6(5879) |
53.6(5469) |
40.8 |
3.9 |
CAH-08 |
|
YSH-10 |
209 |
193.9 |
77.9(7944) |
72.1(7357) |
40.8 |
4.2 |
CAH-10 |
|
YSH-15 |
384.3 |
351.7 |
136.8(13953.5) |
125.2(12770.1) |
40.8 |
7 |
|
|
YSH-21 |
372.1 |
327.1 |
111.5(11376) |
98(10002) |
33.6 |
8.4 |
CAH-21,24 |
|
|
|
 |
|

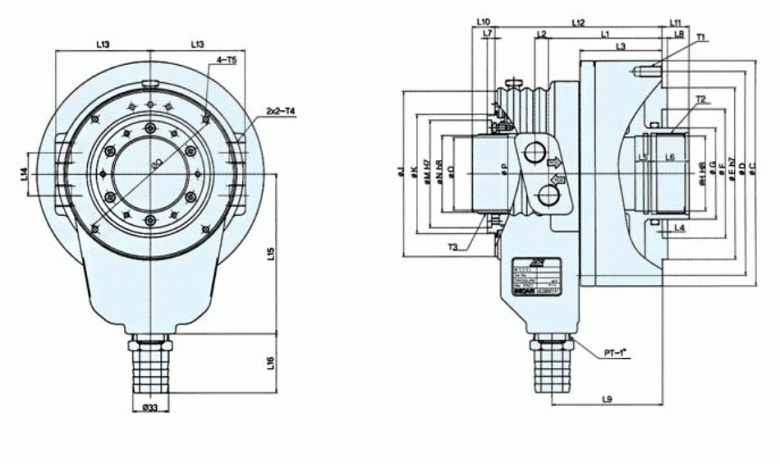

Item
Model
|
C |
D |
E |
F |
G |
H |
J |
K |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
L9 |
L10 Max |
|
YSH-05 |
137 |
115 |
100 |
65 |
48 |
38 |
108 |
76 |
94.2 |
8.9 |
69 |
6 |
15 |
25 |
7 |
5 |
99.5 |
36 |
|
YSH-06 |
165 |
130 |
100 |
80 |
65 |
50 |
108 |
82.5 |
97.3 |
7.4 |
72.5 |
6 |
15 |
30 |
7 |
5 |
102 |
37 |
|
YSH-08 |
190 |
170 |
130 |
90 |
70 |
55 |
126 |
90 |
100.1 |
8.9 |
74 |
6 |
15 |
30 |
7 |
5 |
105.2 |
43 |
|
YSH-10 |
222 |
190 |
160 |
120 |
95 |
80 |
164 |
121 |
115.2 |
12.7 |
86 |
5 |
15 |
35 |
7 |
5 |
112.5 |
46 |
|
YSH-15 |
307 |
275 |
230 |
170 |
140 |
123 |
216 |
167 |
141.5 |
18.5 |
102 |
6 |
20 |
45 |
9.5 |
6 |
163 |
46.3 |
|
YSH-21 |
354 |
290 |
260 |
240 |
190 |
170 |
278 |
217 |
182.5 |
18.5 |
139 |
7 |
20 |
45 |
9.85 |
5 |
200 |
76.3 |
|
|
Item
Model
|
L10 Min |
L11 Max |
L12 |
L13 |
L14 |
L15 |
L16 |
M |
N |
O |
P |
Q |
T1 |
T2 |
T3 |
T4 |
T5 |
|
|
YSH-05 |
21 |
15 |
134.1 |
66.5 |
34 |
115 |
55 |
64 |
42 |
36 |
45 |
98 |
6-M10X18 |
M42XP1.5 |
M44XP1.5 |
PT-3/8 |
4-M5X10 |
|
YSH-06 |
21 |
16 |
135.6 |
78 |
42 |
120 |
55 |
74 |
50 |
46 |
53 |
98 |
6-M10X18 |
M55XP1.5 |
M52XP1.5 |
PT-1/2 |
4-M5X10 |
|
YSH-08 |
21 |
22 |
140 |
80 |
36 |
130 |
55 |
81 |
56 |
52 |
60 |
113 |
6-M10X18 |
M60XP2.0 |
M58XP1.5 |
PT-1/2 |
4-M5X10 |
|
YSH-10 |
21 |
25 |
165 |
92.5 |
40 |
215 |
55 |
110 |
81 |
77 |
85 |
155 |
6-M10X18 |
M85XP2.0 |
M84XP2.0 |
PT-1/2 |
4-M5X10 |
|
YSH-15 |
23.3 |
24 |
214 |
140 |
40 |
215 |
55 |
152 |
122 |
117.5 |
125 |
198 |
12-M16X32 |
M130XP2.0 |
M124XP2.0 |
PT-1/2 |
4-M6X15 |
|
YSH-21 |
25.3 |
51 |
259.5 |
172.6 |
40 |
250 |
55 |
205 |
170.5 |
166.5 |
175 |
256 |
12-M16X32 |
M180XP3.0 |
M173XP2.0 |
PT-1/2 |
4-M6X10 |
|
