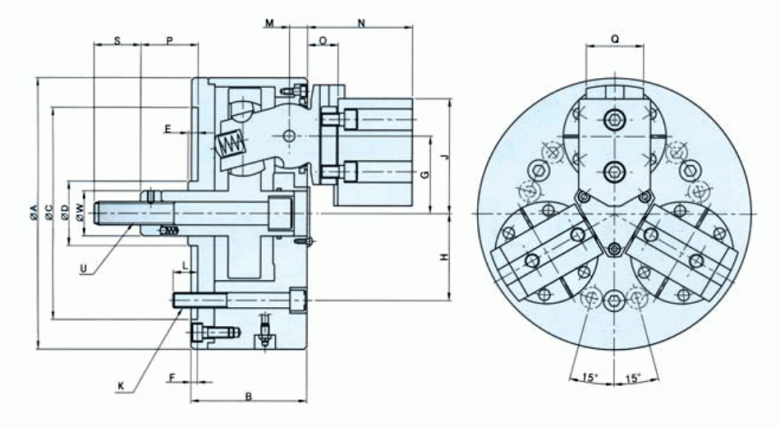

韩国瑞岩三爪卡盘型号:C63M-06/C63M-08/C63M-10/C63M-12/
 |
|
|
 |
|
|
 |
|
Spec
Model
|
Order NO. |
Jaw stroke(Diameter) mm |
Plunger stroke mm |
Gripping Max |
Gripping Min |
Max. permissible input force KN(kgf) |
|
C63M-06 |
1C6306 |
7.4 |
11.4 |
120.0 |
12 |
21.6(2200) |
|
C63M-08 |
1C6308 |
9.2 |
14.4 |
150.0 |
16 |
28.4(2900) |
|
C63M-10 |
1C6310 |
11.8 |
17.5 |
205.0 |
50 |
35.3(3600) |
|
C63M-12 |
1C6312 |
11.8 |
17.5 |
240.0 |
63 |
35.3(3600) |
|
|
Spec
Model
|
Max. static gripping force KN(kgf) |
Max. Permissible speed r.p.m |
weight(With standard soft jaws) |
Gd moment of inertia |
matching cylinder |
|
|
C63M-06 |
64.7(6600) |
3800 |
14 |
0.49(0.05) |
YAS,C,P,T-100 |
|
C63M-08 |
85.3(8700) |
3000 |
23 |
1.02(0.11) |
YAS,C,P,T-125 |
|
C63M-10 |
106(10800) |
2000 |
59 |
5.88(0.60) |
YAS,C,P,T-150 |
|
C63M-12 |
106(10800) |
2000 |
59 |
5.88(0.60) |
YAS,C,P,T-150 |
|
|
|
 |
|
Item
Model
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
|
C63M-06 |
175 |
77 |
140 |
42 |
5 |
5 |
51 |
104.8 |
73.1 |
3-M10X1.5 |
|
C63M-08 |
210 |
89 |
190 |
50 |
5 |
5 |
60 |
133.4 |
88.9 |
3-M16X2 |
|
C63M-10 |
254 |
106 |
230 |
58 |
5 |
5 |
72 |
171.4 |
112.7 |
3-M16X2 |
|
C63M-12 |
304 |
108 |
2820 |
66 |
5 |
5 |
92.5 |
171.4 |
133.2 |
6-M16X2 |
|
|
Item
Model
|
L |
M |
N |
O |
P Max |
P Min |
Q |
S |
|
W |
|
|
C63M-06 |
14 |
13.5 |
44.2 |
19.3 |
43.9 |
32.5 |
38.1 |
38 |
M16X2 |
32 |
|
C63M-08 |
20 |
19.5 |
65.6 |
29.1 |
67.5 |
50 |
44.4 |
46 |
M24X3 |
45 |
|
C63M-10 |
20 |
19.5 |
65.6 |
29.1 |
67.5 |
50 |
57.1 |
46 |
M24X3 |
45 |
|
C63M-12 |
20 |
19.5 |
65.6 |
29.1 |
74.5 |
57 |
57.1 |
50 |
M27X3 |
53 |
|
