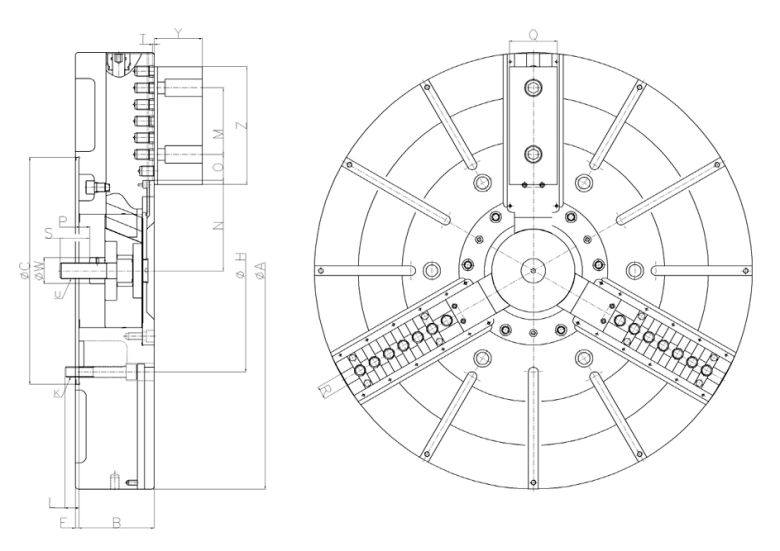

韩国瑞岩三爪卡盘型号:CAS-32HC/CAS-40HC/CAS-50HC/CAS-63HC
 |
|
|
 |
 |
|
|
|
|
 |
|
Spec
Model
|
Order NO. |
Spindle nose NO. |
Jaw stroke(Diameter) mm |
|
Plunger stroke mm |
Gripping Max |
Gripping Min |
Max. permissible input force KN(kgf) |
|
CAS-32HC |
14S32HC |
- |
30 |
30 |
38 |
800 |
296 |
119(12232) |
|
CAS-40HC |
1AS40HC |
- |
46 |
30 |
60 |
1000 |
187 |
161(16450) |
|
CAS-50HC |
1AS50HC |
- |
46 |
30 |
60 |
1250 |
187 |
180(18367) |
|
CAS-63HC |
1AS63HC |
- |
48 |
40 |
60 |
1600 |
320 |
180(18367) |
|
|
Spec
Model
|
Max. static gripping force KN(kgf) |
Max. Permissible speed r.p.m |
weight(With standard soft jaws) |
Gd moment of inertia |
matching cylinder |
Matching hard jaw |
Matching soft jaw |
|
|
CAS-32HC |
214(21916) |
800 |
350 |
23.8(2.43) |
YAS,C,P,T-200 |
HJ-32A1 |
SJ-32A1 |
|
CAS-40HC |
320(32653) |
630 |
670 |
68(7.03) |
YAST-245, YAST-250S |
HJ-40A2 |
SJ-40A2 |
|
CAS-50HC |
320(32653) |
500 |
800 |
145(14.78) |
YAST-245, YAST-250S |
HJ-40A2 |
SJ-40A2 |
|
CAS-63HC |
320(32653) |
280 |
1600 |
500(50.97) |
YAST-245, YAST-250S |
HJ-40A2 |
SJ-40A2 |
|
|
|
 |
|
Item
Model
|
A |
B |
C |
F |
G |
H |
J |
K |
L |
M |
N Max |
N Min |
O Max |
|
CAS-32HC |
800 |
150 |
380 |
6 |
- |
330.2 |
- |
6-M24 |
30 |
76.2 |
172 |
125.5 |
- |
|
CAS-40HC |
210 |
103 |
170 |
5 |
- |
463.6 |
- |
6-M12 |
18 |
25 |
41.7 |
37.9 |
27 |
|
CAS-50HC |
1250 |
180 |
520 |
8 |
- |
463.6 |
- |
6-M24 |
32 |
152.4 |
207 |
154 |
- |
|
CAS-63HC |
1600 |
220 |
720 |
8 |
- |
647.6 |
- |
6-M30 |
46 |
152.4 |
207 |
154 |
- |
|
|
Item
Model
|
O Min |
P Max |
P Min |
Q |
R |
S |
T |
|
V |
W |
X |
Y |
Z |
|
|
CAS-32HC |
- |
35 |
-3 |
75 |
25.5 |
65 |
11 |
M30X3.5 |
- |
55 |
114 |
83 |
165 |
|
CAS-40HC |
10 |
33.5 |
15.5 |
110 |
14 |
20.5 |
2 |
|
3-M6 |
66 |
30 |
39 |
86 |
|
CAS-50HC |
- |
35 |
-25 |
110 |
30 |
68 |
-4 |
M36X4.0 |
- |
60 |
- |
106 |
270 |
|
CAS-63HC |
- |
35 |
-25 |
110 |
30 |
68 |
-4 |
M36X4.0 |
- |
60 |
- |
106 |
270 |
|
