韩国瑞岩seoam三爪中实卡盘CAS

品牌：

韩国瑞岩

动力：

液压卡盘

爪数：

三爪卡盘

型号：

CAS-04/CAS-05/CAS-06/CAS-08/CAS-10/CAS-12/CAS-15/CAS-18/CAS-21/CAS-24/CAS-32/CAS-40/CAS-50/CAS-63/CAS-15 A8/CAS-15 A11/CAS-18 A8/CAS-18 A11/CAS-21 A11/CAS-21 A15/CAS-24 A11/CAS-32HC/CAS-40HC/CAS-50HC/CAS-63HC/CAS-80

产品介绍
图纸下载

韩国瑞岩三爪卡盘型号:CAS-04/CAS-05/CAS-06/CAS-08/CAS-10/CAS-12/CAS-15/CAS-18/CAS-21/CAS-24/CAS-32/CAS-40/CAS-50/CAS-63/CAS-15 A8/CAS-15 A11/CAS-18 A8/CAS-18 A11/CAS-21 A11/CAS-21 A15/CAS-24 A11/CAS-32HC/CAS-40HC/CAS-50HC/CAS-63HC/CAS-80

Spec Model	Order NO.	Spindle nose NO.	Jaw stroke(Diameter) mm	Plunger stroke mm	Gripping Max	Gripping Min	Max. permissible input force KN(kgf)
CAS-04	10104	-	5	15	110	6	4.4(445)
CAS-05	10105	-	5	15	135	15	6.4(647)
CAS-06	1AS06	A2-5	9.2	20	165	19	19(1938)
CAS-08	1AS08	A2-6	8.8	21	210	23	28(2856)
CAS-10	1AS10	A2-8	8.8	25	254	24	32.5(3315)
CAS-12	1AS12	A2-8	10.5	30	304	26	41.5(4233)
CAS-15	1AS15	A2-8,11	16	35	381	60	81.9(8362)
CAS-18	1AS18	A2-8,11	16	35	450	140	81.9(8362)
CAS-21	1AS21	A2-11,15	16	35	530	82	81.9(8362)
CAS-24	1AS24	A2-11,15	16	35	610	170	81.9(8362)
CAS-32	1AS32	-	20.6	38	800	211	100(10200)
CAS-40	1AS40	-	30.5	57	1000	330	161(16450)
CAS-50	1AS50	-	30.5	57	1250	330	161(16450)
CAS-63	1AS63	-	48	60	1600	-	180(18367)
CAS-15 A8	1AS15A8	A2-8	18.6	35	381	60	73.5(7438)
CAS-15 A11	147(14876)	2100	18.6	35	381	60	73.5(7438)
CAS-18 A8	1AS18A8	A2-8	18.6	35	457	60	73.5(7438)
CAS-18 A11	1AS18A11	A2-11	18.6	35	457	60	73.5(7438)
CAS-21 A11	1AS21A11	A2-11	18.6	35	530	110	98.1(9927)
CAS-21 A15	1AS21A15	A2-15	18.6	35	530	110	98.1(9927)
CAS-24 A11	1AS24A11	A2-11	18.6	35	610	110	98.1(9927)
CAS-32HC	1AS32HC		30+(30)	38	800	296	119(12232)
CAS-40HC	1AS40HC		46+(30)	60	1000	187	161(16450)
CAS-50HC	1AS50HC		46+(30)	60	1250	187	180(18367)
CAS-63HC	1AS63HC		48	60	1600	460	196(20000)
CAS-80	1AS80		48	60	2000	-	196(20000)

Spec Model	Max. static gripping force KN(kgf)	Max. Permissible speed r.p.m	weight(With standard soft jaws)	Gd moment of inertia	matching cylinder	Matching hard jaw	Matching soft jaw
CAS-04	12.1(1224)	5000	4	0.196(0.02)	YAS-65	-	SJ-04T2
CAS-05	17.7(1791)	5000	6	0.56(0.06)	YAS,C,P,T-80	-	SJ-05A1
CAS-06	63(6426)	6000	13	1.77(0.18)	YAS,C,P,T-100	HJ-06T1	SJ-06T1
CAS-08	80(8160)	4800	25	5.39(0.55)	YAS,C,P,T-125	HJ-08T1	SJ-08T1
CAS-10	115(11730)	4100	37	11.17(1.20)	YAS,C,P,T-125	HJ-10T1	SJ-10T1
CAS-12	156(16014)	3400	57.3	28.44(2.90)	YAS,C,P,T-150	HJ-10T1	SJ-10T1
CAS-15	248(35391)	3040	96	70.5(7.2)	YAS,C,P,T-200	HJ-15A3	SJ-15A3
CAS-18	248(35391)	2710	131	95(9.7)	YAS,C,P,T-200	HJ-15A3	SJ-15A3
CAS-21	272(27838)	1940	198	188.2(19.2)	YAS,C,P,T-200	HJ-21B1	SJ-21A1
CAS-24	272(27838)	1760	223	67.8(6.92)	YAS,C,P,T-200	HJ-21B1	SJ-21A1
CAS-32	240(24490)	900	341	23.8(2.43)	YASTL-200	HJ-32A1	SJ-32A1
CAS-40	361(36836)	630	670	68(7.03)	YAST-245	HJ-40A1	SJ-40A1
CAS-50	361(36836)	500	800	145(14.78)	YAST-245	HJ-40A1	SJ-40A1
CAS-63	320(32653)	280	1600	500(50.97)	YAST-245	-	-
CAS-15 A8	147(14876)	2100	98	96.6(7.12)	YAS,C,P,T-200	HJ-15A1	SJ-15A2
CAS-15 A11	147(14876)	2100	98	69.8(7.12)	YAS,C,P,T-200	HJ-15A1	SJ-15A2
CAS-18 A8	147(14876)	1700	132	135.32(13.8)	YAS,C,P,T-200	HJ-15A1	SJ-15A2
CAS-18 A11	147(14876)	1700	132	135.32(13.8)	YAS,C,P,T-200	HJ-15A1	SJ-21A2
CAS-21 A11	194(19632)	1500	195	268.68(27.4)	YAS,C,P,T-200	-	SJ21A2
CAS-21 A15	194(19632)	1500	195	268.68(27.4)	YAS,C,P,T-200	-	SJ-21A2
CAS-24 A11	194(19632)	1200	250	456.2(46.52)	YAS,C,P,T-200	-	SJ-21A2
CAS-32HC	214(21916)	800	350	23.8(2.43)	YASTL-200	HJ-32A1	SJ-32A1
CAS-40HC	214(21916)	800	350	23.8(2.43)	YASTL-200	HJ-32A1	SJ-32A1
CAS-50HC	320(32653)	500	800	145(14.78)	YAST-245	HJ-40A2	SJ-40A2
CAS-63HC	358(36600)	400	1600	500(50.97)	YAST-245	HJ-40A2	SJ-40A2
CAS-80	390(39800)	150	3200	-	-	-	-

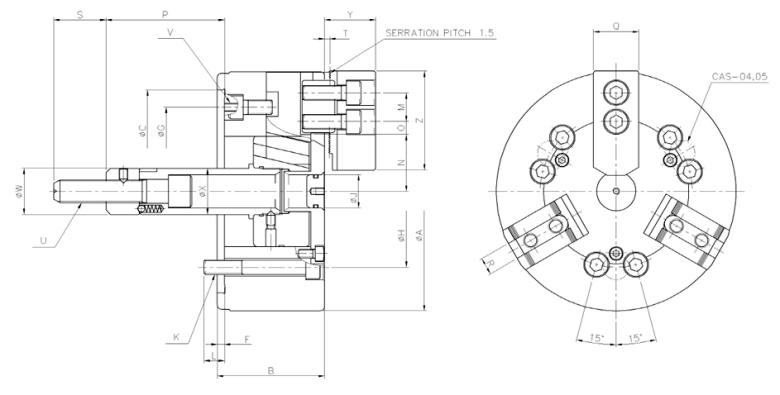

Item Model	A	B	C	D	E	F	G	H	J	K	K(ANSI)	K(JS)	L	L(ANSI)	L(JS)	M
CAS-04	110	52	60	-	-	6	-	80	-	3-M8	-	-	16.5	-	-	14
CAS-05	135	52	80			7		100	-	3-M8			16.5			19
CAS-06	169	74	140			5	116	104.8	23	6-M10			14			20
CAS-08	210	85	170			5	150	133.4	28	6-M12			15			25
CAS-10	254	89	220			5	190	171.4	34	6-M16			18			30
CAS-12	304	106	220			6	190	171.4	39	6-M16			18			30
CAS-15	381	114	300			6	260	171.4	27	6-M20			20			43
CAS-18	450	114	300			6	260	235	27	6-M20			20			43
CAS-21	530	125	380			6	330.2	330.2	27	6-M20			30			60
CAS-24	610	125	380			6	330.2	330.2	27	6-M20			30			60
CAS-32	800	150	380			6	-	330.2	-	6-M24			31			76
CAS-40	1000	180	520			8	-	510	-	6-M24			34			100
CAS-50	1250	180	520			8	-	463.6	-	6-M24			32			100
CAS-63	1600	220	720			8	-	647.6	-	6-M30			46			-
CAS-15 A8	381	125	225	139.714	20	24.21	85.725	171.45	8		5/8-11UNC	6-M16		24	22.5
CAS-15 A11	381	125	280	196.864	20	29.36	117.5	235	10		3/4-10UNC	6-M20		23	26
CAS-18 A8	457	125	225	139.714	20	24.21	85.725	171.45	8		5/8-11UNC	6-M16		24	22.5
CAS-18 A11	457	125	280	196.864	20	29.36	117.5	235	10		3/4-10UNC	6-M20		23	26
CAS-21 A11	530	140	280	196.864	20	29.36	117.5	235	10		3/4-10UNC	6-M20		33.4	31
CAS-21 A15	530	140	380	285.763	22	35.71	165.1	330.2	10		7/8-9UNC	6-M22		35.4	32
CAS-24 A11	610	140	280	196.864	20	29.36	117.5	235	10		3/4-10UNC	6-M20		33.4	31
CAS-32HC	800	150	380			6		330.2		6-M24			30			76.2
CAS-40HC	1000	180	460			8		463.6		6-M24			32			152.4
CAS-50HC	1250	180	520			8		463.6		6-M24			32			152.4
CAS-63HC	1600	220	720			8		647.6		6-M30			47			152.4
CAS-80	2000	250	720	10		10		1120

Item Model	N Max	N Min	O Max	O Min	P Max	P Min	Q	R	S	T		V	W	X	Y	Z
CAS-04	26	23.5	10	7	5	-10	25	10	25	3	M10X1.5	-	25	-	27	54
CAS-05	32	29.5	11.5	7	9	-6	25	10	36	3	M12X1.75	-	28	-	27	58.5
CAS-06	41	36.7	13	7	101.5	81.5	31	12	36	4	M16X2.0	3-M6	32	32	35	72
CAS-08	46.3	41.9	22.5	9	127	106	39	14	36	5	M20X2.5	3-M6	38	38	43	95
CAS-10	51.1	46.7	30.7	11.2	158	133	44	16	36	5	M20X2.5	3-M8	38	44	50	110
CAS-12	61	55.7	48.7	12.7	163	133	50	18	36	5	M20X2.5	3-M8	38	50	54	111
CAS-15	73	65	54.7	15.7	104	69	50	25.5	55	6	M30X3.5	3-M10	55	60	60
CAS-18	106.5	98.5	48.5	23.2	92	57	50	25.5	55	6	M30X3.5	3-M10	55	60	60.3	135
CAS-21	86	78	93.5	27.5	97	62	65	25	55	6	M30X3.5	3-M12	55	60	71	180
CAS-24	124.5	116.5	93.5	27.5	97	62	65	25	55	6	M30X3.5	3-M12	55	60	71	180
CAS-32	88	77.7	-	-	35	-3	75	25.5	60	8	M30X3.5	-	55	114	83	165
CAS-40	145	1298	-	-	53	-3	98	30	65	-4	M36X4.0	-	60	-	106	200
CAS-50	145	129.8	-	-	35	-22	98	30	68	-4	M36X4.0	-	60	-	106	270
CAS-63	-	-	-	-	13	-47	-	-			M36X4.0	-	-	-	-	-
CAS-15 A8	74.5	65.2	54.5	21.5	35	0			50	175	M27X3.0	85		63
CAS-15 A11	74.5	65.2	54.5	21.5	35	0			50	175	M27X3.0	65		63
CAS-18 A8	74.5	65.2	90.5	21.5	35	0			50	175	M27X3.0	120		63
CAS-18 A11	74.5	65.2	90.5	21.5	35	0			50	175	M27X3.0	100		63
CAS-21 A11	101.5	92.2	100.5	21.5	35	0			55	220	M30X3.5	110		75
CAS-21 A15	101.5	92.2	100.5	21.5	35	0			55	220	M30X3.5	110		75
CAS-24 A11	101.5	92.2	136.5	21.5	21.5	0			55	220	M30X3.5	145		75
CAS-32HC	172	125.5			35	-3	75	25.5	65	11	M30X3.5		55	114	83	165
CAS-40HC	207	154			35	-25	110	30	68	0	M36X4.0		60		100	270
CAS-50HC	207	154			35	-25	110	30	68	-4		-	60	-	106	270
CAS-63HC	251	227	-	-	13	-47	110	30	68	-	M36X4.0		60	-	104
CAS-80	-	-	23	-37			110	30	68	-4	M42X4.5	-	66	-	105	270
