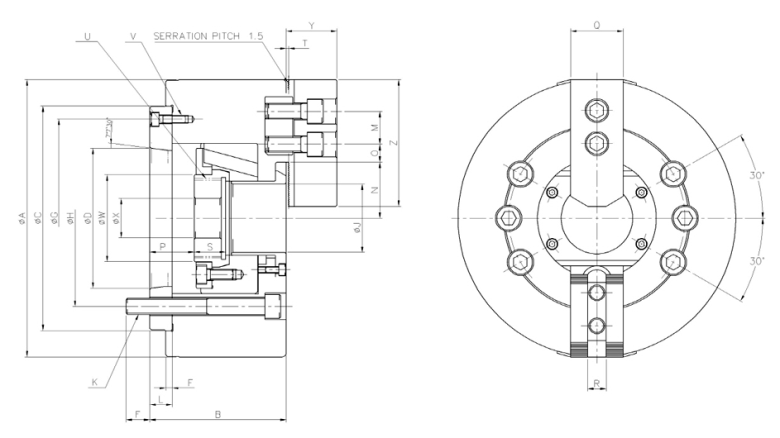

韩国瑞岩三爪卡盘型号:CAHTA-06/CAHTA-08/CAHTA-10/CAHTA-12/CAHTA-15
 |
|
|
|
|
 |
|
|
|
|
 |
|
Spec
Model
|
Order NO. |
Spindle nose NO. |
Thru-hole(Diameter) mm |
Jaw stroke(Diameter) mm |
Plunger stroke mm |
Gripping Max |
Gripping Min |
|
CAHTA-06 |
1AHT06 |
A2-5 |
46 |
5.5 |
13 |
169 |
13 |
|
CAHTA-08 |
1AHT08 |
A2-6 |
52 |
7.6 |
18 |
210 |
11 |
|
CAHTA-10 |
1AHT10 |
A2-8 |
77 |
8.5 |
20 |
254 |
31 |
|
CAHTA-12 |
1AHT12 |
A2-8 |
91 |
10.2 |
24 |
304 |
34 |
|
CAHTA-15 |
1AHT15 |
A2-11 |
118 |
10.6 |
23 |
381 |
30 |
|
|
Spec
Model
|
Max. permissible input force KN(kgf) |
Max. static gripping force KN(kgf) |
Max. Permissible speed r.p.m |
weight(With standard soft jaws) |
Gd moment of inertia |
matching cylinder |
Matching soft jaw |
|
|
CAHTA-06 |
16.6(1700) |
42(4284) |
6000 |
12.3 |
2.20(0.22) |
YAH-06 |
SJ-06B1 |
|
CAHTA-08 |
26.6(2720) |
63(6398) |
5000 |
21.7 |
6.86(0.70) |
YAH-08 |
SJ-08B1 |
|
CAHTA-10 |
33.3(3400) |
100(10200) |
3300 |
51 |
26.47(2.7) |
YAH-12 |
SJ-12B1 |
|
CAHTA-12 |
39(3995) |
100(10200) |
3300 |
51 |
26.47(2.7) |
YAH-12 |
SJ-12B1 |
|
CAHTA-15 |
47(12236) |
120(12236) |
2500 |
115 |
87.25(8.90) |
YAH,YSH-15 |
SJ-15B1 |
|
|
|
 |
|
Item
Model
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N Max |
N Min |
|
CAHTA-06 |
169 |
90 |
140 |
82.563 |
15 |
5 |
116 |
104.8 |
46 |
6-M10 |
16 |
20 |
33.5 |
30.7 |
|
CAHTA-08 |
210 |
103 |
170 |
106.38 |
17 |
5 |
150 |
133.4 |
52 |
6-M12 |
18 |
25 |
41.7 |
37.9 |
|
CAHTA-10 |
254 |
113 |
220 |
139.72 |
18 |
5 |
190 |
171.4 |
77 |
6-M16 |
24 |
30 |
57.5 |
50.3 |
|
CAHTA-12 |
304 |
127 |
220 |
139.72 |
18 |
6 |
171.4 |
190 |
91 |
6-M16 |
25 |
30 |
62.1 |
56.7 |
|
CAHTA-15 |
381 |
149 |
300 |
196.87 |
22 |
6 |
260 |
235 |
118 |
6-M20 |
28 |
43 |
82 |
76.7 |
|
|
Item
Model
|
O Max |
O Min |
P Max |
P Min |
Q |
R |
S |
T |
U Max |
V |
W |
X |
Y |
Z |
|
|
CAHTA-06 |
23 |
10 |
27 |
14 |
31 |
12 |
19 |
2 |
M55X2 |
3-M6 |
60 |
20 |
33 |
66 |
|
CAHTA-08 |
27 |
10 |
33.5 |
15.5 |
39 |
14 |
20.5 |
2 |
M60X2 |
3-M6 |
66 |
30 |
39 |
86 |
|
CAHTA-10 |
31 |
12 |
27.5 |
7.5 |
44 |
16 |
27 |
2 |
M85X2 |
3-M8 |
94 |
30 |
45 |
108 |
|
CAHTA-12 |
45 |
15 |
28 |
4 |
50 |
21 |
28 |
2 |
M130X2 |
3-M10 |
139 |
60 |
70 |
165 |
|
CAHTA-15 |
43.75 |
18.25 |
33 |
10 |
62 |
24 |
39 |
5 |
M130X2 |
3-M10 |
139 |
60 |
70 |
165 |
|
