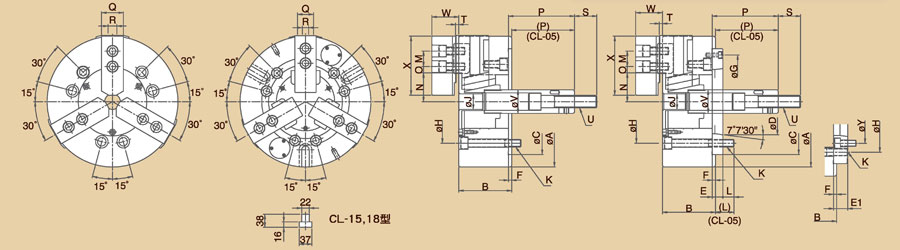

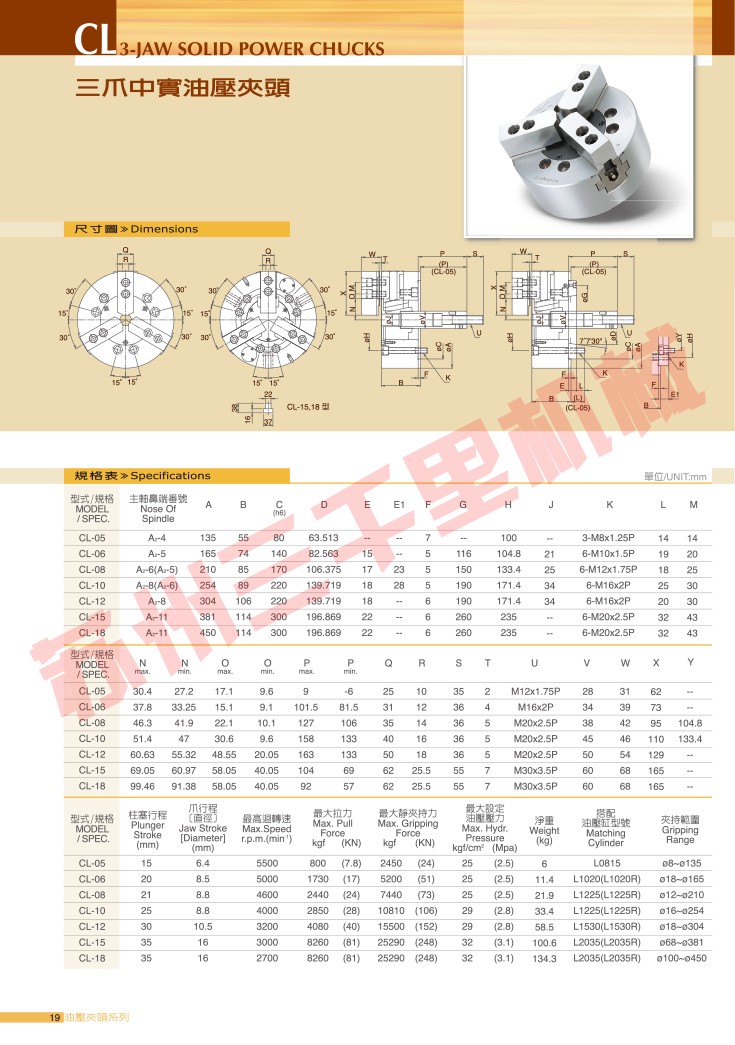

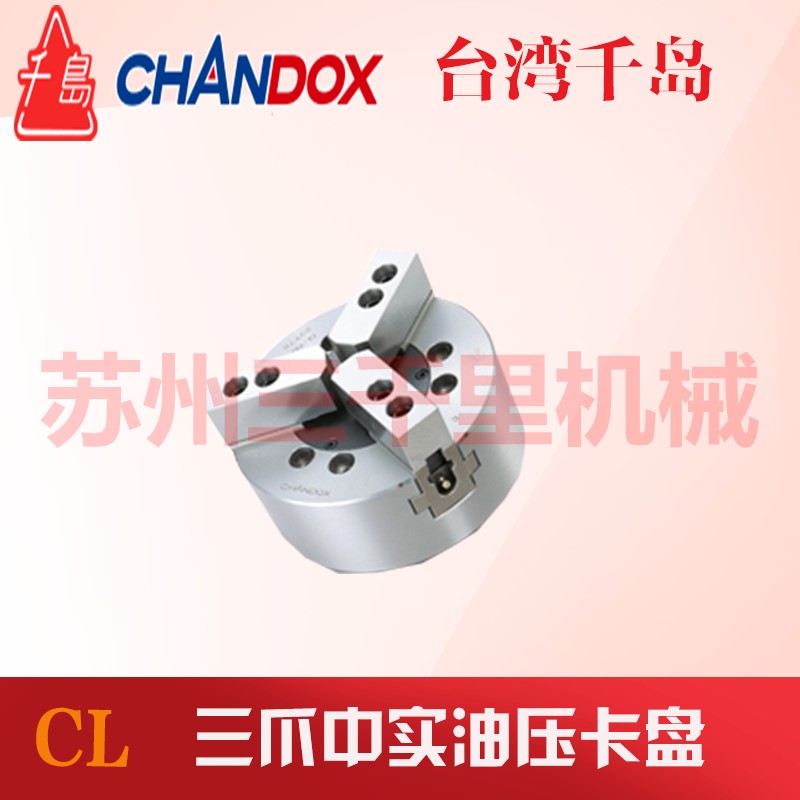

| 型式 / 規格 | 主軸鼻端番號 | A | B |
C (h6) |
D | E | E1 | F | G | H |
| CL-05 | A2-4 | 135 | 55 | 80 | 63.513 | - | - | 7 | - | 100 |
| CL-06 | A2-5 | 165 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 |
| CL-08 | A2-6(A2-5) | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 |
| CL-10 | A2-8(A2-6) | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 |
| CL-12 | A2-8 | 304 | 106 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 |
| CL-15 | A2-11 | 381 | 114 | 300 | 196.869 | 22 | - | 6 | 260 | 235 |
| CL-18 | A2-11 | 450 | 114 | 300 | 196.869 | 22 | - | 6 | 260 | 235 |
| 型式 / 規格 | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | T | U | V | W |
| CL-05 | - | 3-M8×1.25P | 14 | 14 | 30.4 | 27.2 | 17.1 | 9.6 | 9 | -6 | 25 | 10 | 35 | 2 | M12×1.75P | 28 | 31 |
| CL-06 | 21 | 6-M10×1.5P | 19 | 20 | 37.8 | 33.25 | 15.1 | 9.1 | 101.5 | 81.5 | 31 | 12 | 36 | 4 | M16×2P | 34 | 39 |
| CL-08 | 25 | 6-M12×1.75P | 18 | 25 | 46.3 | 41.9 | 22.1 | 10.1 | 127 | 106 | 35 | 14 | 36 | 5 | M20×2.5P | 38 | 42 |
| CL-10 | 34 | 6-M16×2P | 25 | 30 | 51.4 | 47 | 30.6 | 9.6 | 158 | 133 | 40 | 16 | 36 | 5 | M20×2.5P | 45 | 46 |
| CL-12 | 34 | 6-M16×2P | 20 | 30 | 60.7 | 60.63 | 55.32 | 48.55 | 20.05 | 133 | 50 | 18 | 36 | 5 | M20×2.5P | 50 | 54 |
| CL-15 | - | 6-M20×2.5P | 32 | 43 | 69.05 | 60.97 | 58.05 | 40.05 | 104 | 69 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 |
| CL-18 | - | 6-M20×2.5P | 32 | 43 | 99.46 | 91.38 | 58.05 | 40.05 | 92 | 57 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 |
| 型式 / 規格 | X | Y |
柱塞行程 (mm) |
爪行程(直徑) mm |
最高迴轉數 r.p.m (min-1) |
最大拉力 kgf (KN) |
最大靜夾持力 kgf (KN) |
最大設定 油壓壓力 kgf/cm2 (Mpa) |
淨重 (kg) |
搭配油壓缸型號 | 夾持範圍 |
| CL-05 | 62 | - | 15 | 6.4 | 5500 | 800 (7.8) | 2450 (24) | 25 (2.5) | 6 | L0815 | Ø8~Ø135 |
| CL-06 | 73 | - | 20 | 8.5 | 5000 | 1730 (17) | 5200 (51) | 25 (2.5) | 11.4 | L1020(L1020R) | Ø18~Ø165 |
| CL-08 | 95 | 104.8 | 21 | 8.8 | 4600 | 2440 (24) | 7440 (73) | 25 (2.5) | 21.9 | L1225(L1225R) | Ø12~Ø210 |
| CL-10 | 110 | 133.4 | 25 | 8.8 | 4000 | 2850 (28) | 10810 (106) | 29 (2.8) | 33.4 | L1225(L1225R) | Ø16~Ø254 |
| CL-12 | 129 | - | 30 | 10.5 | 3200 | 4080 (40) | 15500 (152) | 29 (2.8) | 58.5 | L1530(L1530R) | Ø18~Ø304 |
| CL-15 | 165 | - | 35 | 16 | 3000 | 8260 (81) | 25290 (248) | 32 (3.1) | 100.6 | L2035(L2035R) | Ø68~Ø381 |
| CL-18 | 165 | - | 35 | 16 | 2700 | 8260 (81) | 25290 (248) | 32 (3.1) | 134.3 | L2035(L2035R) | Ø100~Ø450 |
